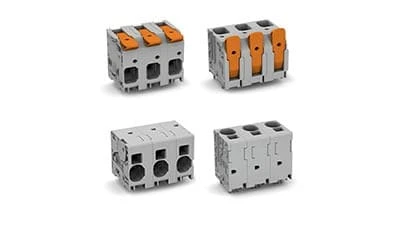

Germantown, Wisconsin – WAGO is adding to its existing product line of 2600 Series PCB terminal blocks for power electronics featuring push-in Cage Clamp connection technology. The new versions allow for increased pin spacing and double pinning to allow for expanded current capacities while maximizing voltage ratings. Options for these terminal blocks now include UL ratings as high as 85A and up to 1,000V.
Product variants include:
• 2626 Series (8AWG max) in 12.5mm pin spacing, rated up to 38A/600V
• 2606 Series (8AWG max) in 12.5mm pin spacing, rated up to 42A/600V
• 2636 Series (4AWG max) in 15mm pin spacing, rated up to 85 A/600 V
• 2616 Series (4AWG max) in 15mm pin spacing, rated up to 78A/600V
All Series are UL1059 certified for 1,000V in single pole configurations. Additional factory-assembled spacers also allow for the creation of multi-pole configurations that meet 1,000V spacing requirements.
