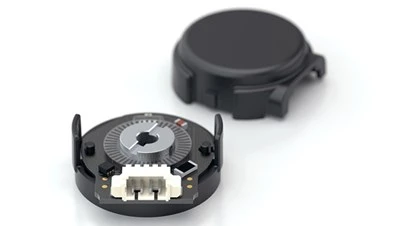

Nuremburg, Germany – US Digital, a US manufacturer of quality motion control since 1980, has added 400 cycles per revolution (cpr) and 500cpr resolutions to its existing E4T line of miniature optical encoders. Specifically designed for robotics, medical, and other industrial automation applications, the new E4Ts deliver position and velocity feedback, while fitting National Electrical Manufacturers Association (NEMA) motors as small as size eight.
Using state of the art transmissive optical sensing technology, the newly announced 400cpr and 500cpr resolutions represent up to a 38% increase in available cpr and now support applications requiring up to 2,000 pulses per revolution. This substantial increase in resolution was achieved without any compromise to package form factor, electrical characteristics or output signal robustness. The E4T line of encoders is available in both single ended and differential signal outputs for applications where noise immunity is critical. Moreover, the 400cpr and 500cpr options retain the E4T’s simple and efficient, push-on hub disk assembly process, helping US Digital customers keep installation time, assembly cost and complexity to a minimum.
Product Features:
- 10 resolutions up to 360cpr, plus new 400cpr and 500cpr resolution
- 288 configurations available, including single and differential output
- Compact form factor
- 0.866"/22.00mm package outside diameter
- 0.446"/11.33mm package height
- Fits NEMA 8, 11, 14, and 17 motors
- Simple and efficient assembly process
- Four-piece construction
- Push-on hub disk design, patent pending
- 100kHz frequency response
- Shafted version up to 0.25"/6.25mm diameter
Sample and production quantities of the 400cpr and 500cpr E4T are now available. To learn more about the E4T product line, or for complete technical specifications, including mechanical drawings, visit http://www.usdigital.com/E4T.
Source: US Digital
