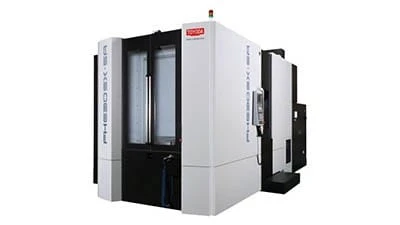

Arlington Heights, Illinois – The FH630SXi 5-Axis is Toyoda's newest 5-axis machine for a 630mm platform that performs complex part production and multi-surface processing in one setup.
Its rigid spindle design adopts a tilting swivel motion to enable efficient processing of large workpieces.
The pallet, pallet height, and workpiece restrictions (swing, height, and weight) match existing FH630SX-i horizontal machining centers.
The FH630SX-i 5-Axis features an 8,000rpm high-torque spindle, with the option of a 15,000rpm high-power, multi-use spindle, and a replaceable taper design for high maintainability. The tilting spindle comes with a robust C-axis drive train and an enlarged C-axis swivel range of 230° for wider components.
At-a-glance
Pallet size: 24.8" x 24.8" (630mm x 630mm)
X-axis travel: 31.5” (800mm)
Y-axis travel: 33.46" (850mm)
Z-axis travel: 41.33" (1,050mm)
Max. workpiece swing: 46.06" (1,170mm)
Max. workpiece height: 62.99" (1,600 mm)
Max. work load on the pallet: 3,306 lb (1,500kg)
Spindle output torque: 802 lb-ft (1,088N•m)
Available spindle: CAT#50 107hp 8,000rpm (1,088N•m)
Available spindle: CAT#50 74hp 15,000rpm (526N•m)
Rapid feedrate (X, Y, Z axis): 2,362ipm (60m/min)
Tool storage capacity: 60 standard
Standard floor space: 170.1" x 266.3" (4,320mm x 6,800mm)
Machine height: 130" (3,308mm)
Standard net weight: 50,700 lb (23,000kg)
