External power supply

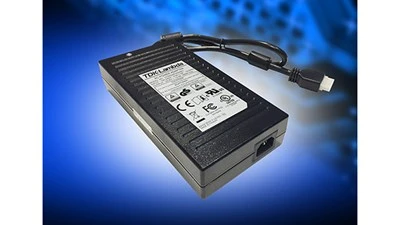

The TDK-Lambda medical and ITE certified DTM300-D external power supplies series offer a choice of Class I or Class II (no ground connection) inputs and meet the stringent Level VI DoE standards for efficiency and off-load power. The DTM300-D is certified to both the medical IEC 60601-1 and ITE IEC 60950-1 standards, making it suitable for a variety of power-hungry medical, industrial, and test and measurement applications.

The convection-cooled DTM300-D is housed in a rugged, vent-free enclosure, measuring 222mm x 112mm x 45mm (LxWxH).  AC is applied using the standard IEC 60320-C14 (3-prong) or 60320-C18 (2-prong) connector and DC provided through a ten-pin Molex Mini-Fit connector.  Other connectors are available upon request.  The adapters also feature over-voltage and over-current protection.

Accepting a 90 to 264VAC input, the 300W adapters are available with 12V, 19V, 24V, 28V, 48V, and 54V outputs and can operate in ambient temperatures ranging from -30°C to +60°C (derating linearly to 50% load from 40°C to 60°C).  In addition to satisfying DoE Level VI requirements with an average efficiency of greater than 88%, the power supplies have an off-load power draw of less than 0.5W.

The DTM300 has been certified to IEC/ES/CSA/EN60601-1, IEC/UL/CSA/EN60950-1 and carries the CE mark for the Low Voltage, EMC and RoHS2 Directives.  All models meet EN60601-2, IEC60601-1-2 Ed4:2014, EN55011/EN55022 Class B, EN55024 Class B, FCC Part 15 Class B, FCC Part 18 Class B emissions and immunity standards.  Input to output isolation is 4,000Vac (2 x MoPP), with a touch current of <100µA.  Class I models are suitable for BF rated equipment with an output to ground isolation of 1,500VAC.

Main features and benefits

• Compliant with DoE level VI requirements
• < 0.5W off-load power
• Medical and ITE certifications
• Class I or Class II (no ground connection) inputs

Major specifications

Source: TDK-Lambda Americas
