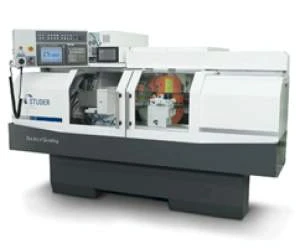

By combining ID and OD grinding in a single platform, the S33 is the grinding solution that will increase your efficiency and output. From high throughput OD production lines to small-scale job shops, the S33 has the ability to reduce changeover times, speed up your grinding processes, and deliver consistent precision. And now, Studer offers the S33 Silverbird Plus package with a two-year warranty and a bonus Preventative Maintenance service.
Advantages
S33 - Dimensions
• Distance between centers 650mm to 1000mm (25.6" to 39.4")
• Centre height 175mm (6.9")
• Max. workpiece weight 80kg to 120kg (176 lbs to 264 lbs)
Hardware
• Optional wheelhead: external wheelhead with grinding wheel on the right, can be swivelled on 0° and 30° end stops with minimal reduction of center distance; or, turret-type wheelhead with manual swivel 2.5° Hirth with automatic swivel 1° Hirth
• External and internal grinding possible in one setup
• C axis for the workhead enabling form and thread grinding
• Granitan mineral-casting S103 machine base
Software
• Extremely easy programming with Studer Pictogramming
• StuderGRIND programming software for producing grinding and dressing programs on a PC
• Reduced setup and resetting times with Studer Quick-Set
• Standardized interfaces for peripheral devices
Silverbird Plus
• Two-year extended warranty
• Preventative maintenance service
