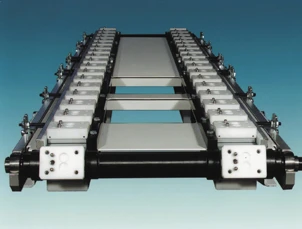

Conveyor Technologies' Dual Track Precision Indexing Conveyor delivers single-track positioning accuracy with dual-track versatility. The open-center design permits a variety of in-line operations, while dual tracks allow processing of smaller parts on each belt or large parts up to 10 lbs. and 24-in. in length, across both belts.
The conveyor's patented FlexLoc Convertible Holder System provides ±0.01-in. positioning tolerance in multiple axes for mounted part holders.
Available in 12, 18, and 24-in. widths, the dual track, open-center design accommodates forming or punching heads, assembly fixtures, inspection and testing stations, laser printing equipment, tag and label applications, and more. Various stations combined with single or multiple-pitch indexing, accept single or multiple parts per index. While specific lengths are available, standard conveyor lengths run in 2 to 10 ft. sections.
The accuracy of the dual track conveyor is achieved with dual pulleys that are precision machined on an integral shaft, then, mounted on a common frame with matched timing belts that use Conveyor Technologies' advanced AccuMove technology.
A lower return support system prevents belt sag and oscillation. An optional feature allowing calibration of holder to actual belt tooth form provides the highest level of precision alignment of any system in the market, according to the company.
Conveyor Technologies Ltd.
Milford, OH.
conveyortechltd.com
