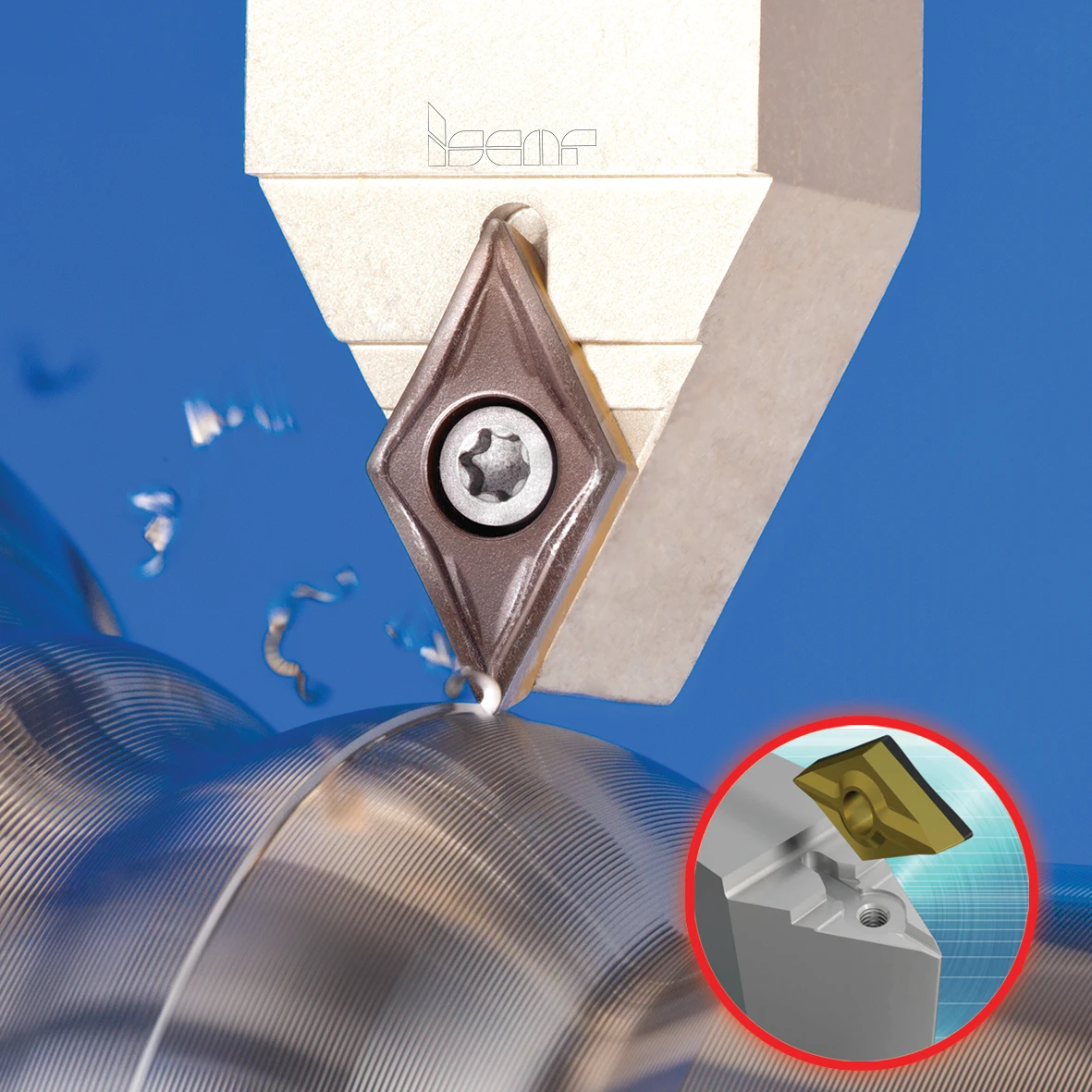

ISCAR is introducing new SDNCN …-13-SL and SDJCN …-13-SL screw lock toolholders for 55° diamond inserts with a 7° clearance angle. It has a long groove on the pocket and a matching ridge at the insert bottom, which ensures high rigidity in profiling applications.
New DCMT 13T5..-F3P-SL - 55° rhombic positive flank inserts with a new F3P chipformer were designed for semi-finishing and finishing of steel. They are available in grades IC8150 and IC8250.
New DCMT 13T5..-M3M-SL - 55° rhombic positive flank inserts with a new M3M chipformer were designed for semi-finishing and medium machining conditions on stainless and low carbon steel. They are available in grades IC6015 and IC6025.
New DCMT 13T5..-SM-SL and DCMT 13T5..-PF-SL: Apart from the new F3P and M3M chip-formers, ISCAR is introducing the same insert geometry with the widely used SM and PF chip-formers on the standard DCMT 11T3.. inserts.
Endusers who currently use the SM and PF chip-formers, will easily see the advantage of using the new clamping system.
The unique clamping design enables machining at high chip load, thus reducing machining cycle time while maintaining high profile accuracy.
The new tools are available in 5/8", 3/4”, and 1” shanks.
