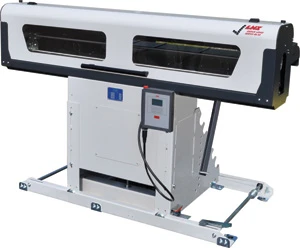

The Quick Load Servo 80 S2 automatic magazine loader for short bars (14” – 63”, not to exceed the spindle length) accommodates bar stock diameters from ¼” to 3-1/8” (6mm – 80mm). The new bar feeders increase productivity through reliable loading and by enabling optimum machine spindle speeds.
Quick Load Servo 80 S2 includes three pushers to cover a broad bar stock diameter range for fixed or traveling headstock turning machines with bar capacities of 1-5/8”, 2”, 2-1/2”, 2-5/8” and 3”. Other unique features that contribute to the exceptional range, quiet loading, smooth bar feeding (with or without turret help), and quick changeovers include a patented loading mechanism, automatic bar diameter adjustment for bar selection fingers and centerline alignment, and an easy-to-use, menu driven, prompting remote control.
Additional productivity-enhancing benefits are 15-second partial changeovers within the pusher range either by direct data entry or via part number recall from the library of up to 500 part programs; automatic torque and speed adjustment; X- or Z-axis retraction system; and on-board storage of spindle liners and pushers. Complete specifications can be downloaded from www.lns-america.com.
LNS is the single-source supplier of advanced bar feeders, chip and coolant management systems, workholding devices, oil mist collectors and other products that help manufacturers achieve greater productivity.
