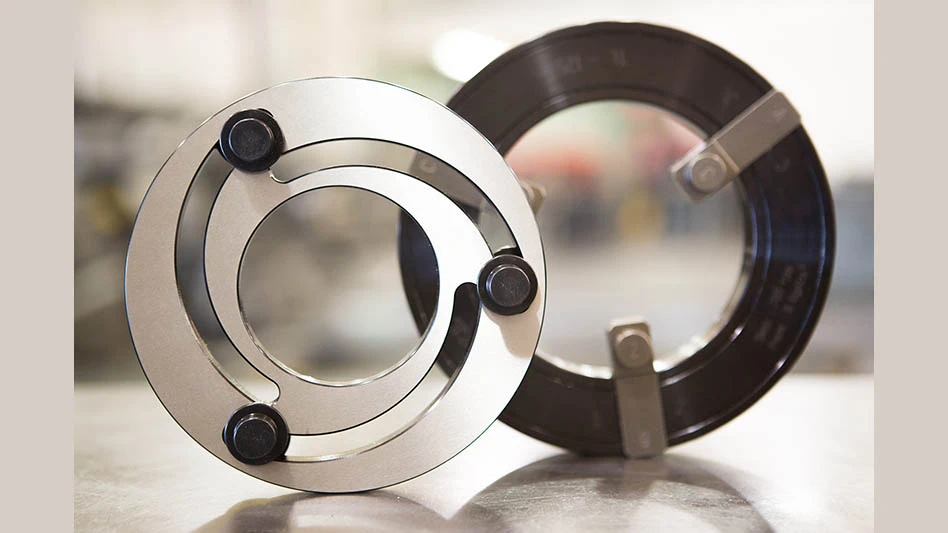

Photo credit: Dillon Manufacturing Inc.
Dillon self-centering Jaw Forming Rings, or Jaw Boring Rings, attach to the front of jaws without tools so installation is fast and simple, and set-up times are slashed. Additionally, they provide a jaw surface true to the machine centerline and increase up-times for running machined parts. Uniform pressure on jaws produces a more consistent bore on large diameter chucks. Compensation for “jaw lift” even in worn chucks, yields better part concentricity. Soft jaws, round jaws, and full-grip jaws can be precisely machined for a firmer grip of the workpiece. Dillon Jaw Boring Rings are available in diameter-specific models or adjustable models to bore a range of chuck diameters.
Chuck-diameter-specific versions, and adjustable boring rings are available from 6-to-18-inches in diameter. Both styles feature no-tools attachment. Dillon jaw forming rings are a high-quality product which will ensure years of quick, stress-free set-ups when paired with Dillon jaws.
