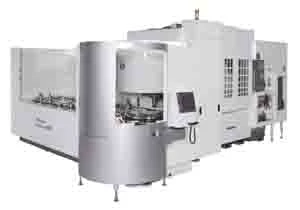

Kitamura Machinery, the premier manufacturer of precision horizontal, vertical and 5-axis machining centers, has expanded its machining center line-up with the Mycenter-Supercell400 horizontal 5-axis machining center. By combining a lights-out machining mentality with simultaneous 5-axis capabilities, Kitamura has constructed an ultra-high precision, flexible manufacturing system capable of not only machining multiple surfaces in one set-up, but also has the versatility to handle highly mixed production components, completely unmanned.
“The Mycenter Supercell-400 was further developed from earlier technology in our manufacture of the first Supercell-Series 5-axis horizontal machining centers back in 1985,” says Dr. Akihiro Kitamura, president, Kitamura. “Our goal with the Supercell-400 was to bring a product to market that could dramatically reduce set-ups, improve parts accuracy and eliminate work in process inventory in order to meet JIT objectives. The Mycenter Supercell-400 offers our users a multi-pallet, multi-tool system capable of machining a wide variety of parts, unattended for hours at a time. Add in the durability to maintain specs over many years and you have an investment that keeps providing a return long after units from other manufacturers have been replaced.”
The Supercell-400 is designed with a 360° rotary table combined with a 100° trunnion table, 20 pallet APC, 140T ATC and a 15,000rpm, energy efficient, 4-step gear driven dual contact spindle. Options of up to 120 pallets and up to 290 tools can be added for greater machining flexibility in unmanned operation. (A 20,000rpm, gear driven dual contact spindle is also an available option for high speed machining requirements). Linear scale feedback is standard on all axes allowing for ultra-high accuracies of ±0.000039", repeatability ±0.00002".
To ensure proper machine operation, a work ID system employs an IC chip on each pallet allowing for storage and communication of pallet work data quickly and accurately with the machines controller. Pallet size on the Mycenter-Supercell-400 is 13.78" round with a maximum load per pallet of 118.8 lb for the 20-station pallet system. Kitamura’s original Automatic Work Handling Robot (AWC) is exclusively designed for the Supercell-400, reducing pallet load & unload time, allowing for precise and safe JIT operation for highly mixed production runs.
The Mycenter Supercell-400 comes standard with a Kitamura-Fanuc 30iMB control standard with Windows CE.NET operating system, AI Nano CC II control (600 block look ahead, 2500 block look-ahead processing speed), 1280M Memory, and 100mbps Ethernet transfer rate for faster processing of .
About Kitamura Machinery
Founded in 1933, Kitamura Machinery is dedicated to building the most technically advanced horizontal, vertical and 5-axis machining centers in the world. Kitamura machining centers are known and respected for their no-compromises precision and extended floor life even under the most demanding conditions. With its U.S. Corporate Headquarters located in Wheeling, IL, Kitamura provides its products to a diverse customer base worldwide. For more information please visit www.kitamura-machinery.com or contact us at 1-847-520-7755.
