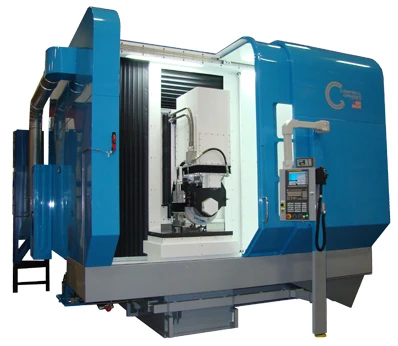

The Model 800 machine configuration is optimized for creep feed grinding processes which require (3) linear axes. Specifically, it is a traveling column design with a Y axis ram traveling on the Z axis, and a stationary work-piece. This configuration allows for a very small machine footprint while allowing all three structural guideway rail mating components to have a large closed box cross section; maximizing grinding stiffness and geometric accuracy. This configuration allows for easy implementation of common creep-feed grinding options such as CDCF grinding and indexing table part loading.
Standard 800 Series Features Include:
• Fanuc CNC Control
• Precision Roller Ways – All Axes
• Linear Glass Scales – All Axes
• Ability To Use Any Abrasive
• Liquid Cooled Grinding Spindle
• Spindles available 30 up to 150 HP
• Full Machine Enclosure With World Class Ergonomics
• X-Axis – 24" up to 240" of Travel in 12" increments
• Y-Axis – 12" up to 36" of Travel in 6" increments
• Z-Axis – 6" up to 24" of Travel in 6" increments
• Table Top up to 36" wide and 24" long other sizes available in 6 inch increments
Options:
• Over the Wheel Dresser • Table Mount Dresser • CDCF Dresser • Disk Dresser • Programmable Coolant Nozzles • Magnetic Chuck • Wheel Balance System • Wheel Load Assist • Part Load Assist • Mist Collector • Numerous Coolant Systems Available • Thru the Table Hydraulics / Pneumatics for Fixturing • Fire Suppression System - Oil Coolant • Many Other Options Available
