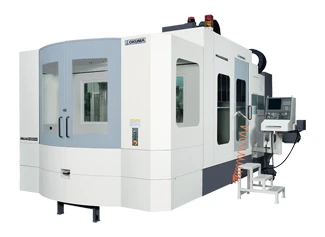

The MILLAC-VH Series five-axis machining centers allow the production of complex, multi-face parts in one set up, improving accuracy and reducing overall cycle time. These high performance machining centers are designed with a box type bed and wide rectangular ways for enhanced rigidity. Large, pre-tensioned ball screws with rigid supports ensure positioning accuracy. The spindle can be positioned to any angle within its 150 degree range.
This feature reduces cutting time and extends tool life by allowing the use of a standard end mill or face mill rather than a ball end mill. A geared head stock that pivots every 0.001 degree and positions with curvic coupling every 5 degrees provides exceptional access to critical part surfaces. The standard rotary automatic pallet changer significantly increases productivity by reducing set up time and improving machining accuracy.
Table Dimensions 1,000mm x 1,000mm (39.37" x 39.37")
Travel X/Y/Z X-Axis: 1,650mm (64.96")
Y-Axis: 1,300mm (51.18")
Z-Axis: 1,000mm (39.37")
Max Load 2,000kg (4,400 lbs)
Rapid Traverse (X/Y/Z) X / Y Axis: 24,000mm/min (945ipm)
Z-Axis: 12,000mm/min (473ipm)
Rapid Traverse (A/C) deg/min 1~1,080
Spindle Speed min-1 100~10,000
Spindle Power kW (hp) 18.5 / 22 (25 / 30)
