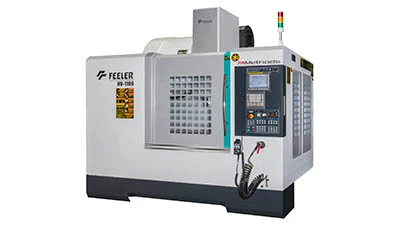

Sudbury, Massachusetts – Precision machine tool supplier Methods Machine Tools Inc. now offers the Feeler HV-1100V, a high-performance vertical machining center that features a rigid design and other innovations to provide exceptional accuracy and machining efficiency.
The HV-1100V features a dedicated trunnion, 4+1 axis configuration, and a 13.8" (350mm) rotary table. The trunnion is built by Autocam with solid roller cam technology, and offers a 16" (406mm) by 14" (356mm) work envelope. The tilting A-axis has ±120° of motion.
Reinforced cross-ribbed column structure and no counter-balance weight design improves torsional torque resistance and reduces low frequency resonance for optimal stability. This design reduces peck-drilling vibration and prevents oscillation normally caused by a counter-balance weight, improving movement stability on the Z-axis and delivering 30% increased rigidity for more accuracy, better workpiece finish, and less waste.
A maximum spindle speed of 12,000rpm on 30hp direct drive, 40 taper spindle is standard.
The HV-1100V also features a 30-tool swing arm automatic tool changer magazine with a tool-to-tool time of 1 second @ 60Hz. A fast chip removal system with chip conveyor, automatic lubrication system, dust-proof electrical cabinet, and Methods’ safety package are all standard on the HV-1100V.
X-axis travel: 33.5" (850mm)
Y-axis travel: 19.3" (490mm)
Z-axis travel of 20.7" (5,250mm)
Source: Methods Machine Tools
