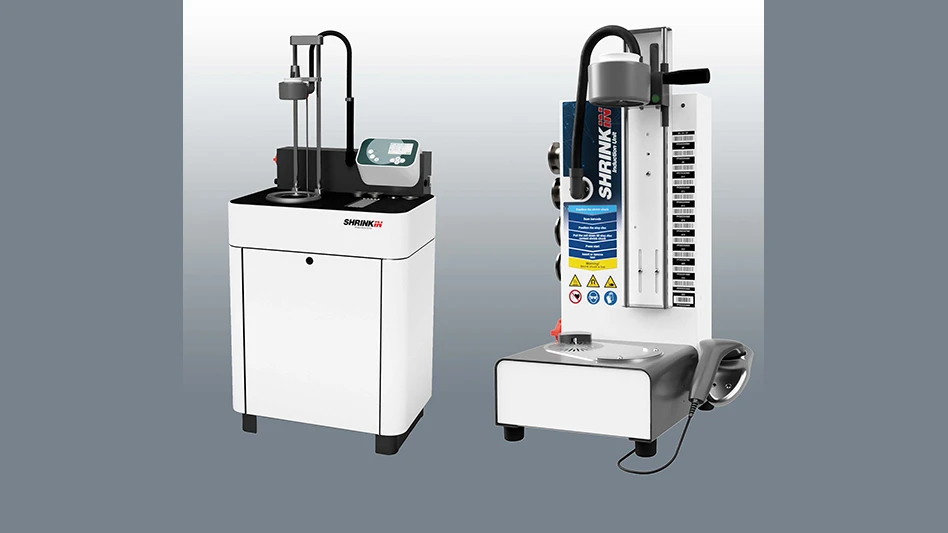

Professional unit – Automatic machine with liquid cooling and drying processes, provides cooling time of 30 seconds.
A fully automated process guarantees maximum operator safety. The heated shrink chuck is lowered directly into the cooling position following the shrinking process, while the operator cannot touch the hot chuck. Software and operating parameters specifically for ISCAR products, as well as other standard shrink chucks.
Advantages
Fully automatic shrinking and cooling process
• No risk of burning – shrink holder always remains cool.
• The shrink holder cannot be overheated as it always remains at room temperature. Liquid cooling - 10 x more efficient than contact cooling
• Concentricity is maintained by uniform cooling process.
Liquid cooling by “cooling tower principle”
• Reduction of non-productive time as the cooling process is performed within seconds.
• No active cooling of emulsion necessary.
• No power consumption required due to additional cooler.
• Protected against corrosion of the tool and shrink holder.
Cooling does not depend on contour
• No damage incurred to the cutter from coolant cups.
• No extra coolant equipment required for different holder geometries.
Heating and cooling in one position
• Clean structured workplace.
• No movement of hot shrink holders.
Easy user interface – Interface between user and the application is graphic based.
The advantages on the shopfloor:
• Intuitive operation
• Self-descriptive
• Language independent
• Increased visibility
• More pleasant appearance
• Reduced reaction times
Basic unit – compact, low-cost, entry level shrink machine
An air-cooled, table-top machine with a manual spool guiding system together with patented ferrite discs ensures low operating costs with additional benefits.
Advantages
• Easy handling at the push of a button.
• Small, light, powerful.
• Tool change enabled within seconds.
• Input of the shrink parameters made simple by scanning barcodes.
• Energy saving induction technology enables longer tool life.
• Precise centering of the tool.
• Small space requirements and portable.
• Suitable for shrink holders from 3 – 32mm.
The holder adapter and stop discs for SRK / ER SRK holders is ordered separately.
