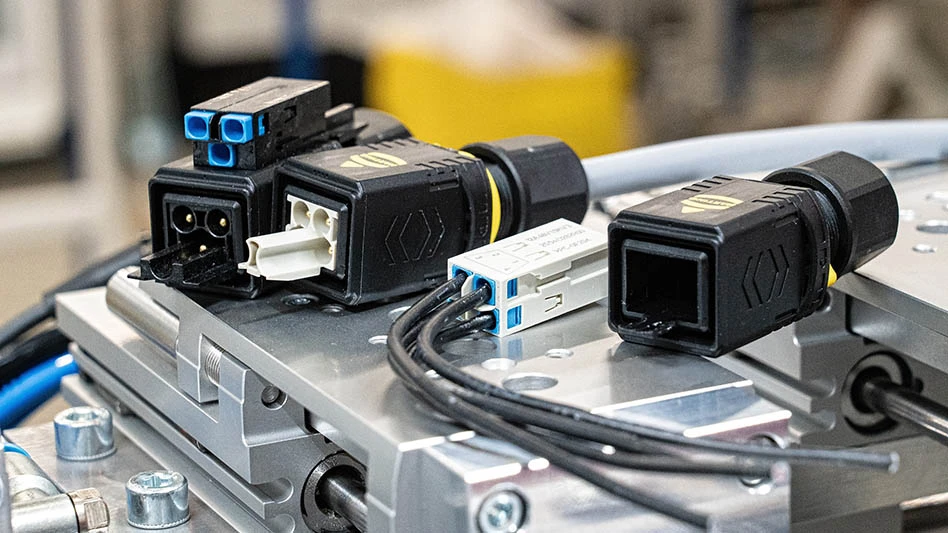

PHOTO CREDIT: HARTING
The HARTING Technology Group has introduced the PushPull V4 Power QuickLock, an addition to the proven PushPull connector family. This product features Han QuickLock termination technology, enabling fast and tool-less assembly directly on site.
The PushPull V4 Power QuickLock connectors provide a reliable and user-friendly solution for power supply in compact and robust applications. Due to the QuickLock technology, users benefit from field-assembly without the need for special tools – ideal for flexible use in automation, machinery, robotics, and other industry and outdoor applications.
Compact, powerful, and safe
PushPull V4 Power QuickLock variants are plug-compatible with the existing PushPull Power connectors with crimp connection, yet offer significant advantages:
- Tool-less assembly with Han QuickLock
- Compact housing with high protection class (IP65/67)
- High current carrying capacity with minimal space requirements
- Innovative PushPull locking mechanism with audible “click”
- Touch-proof protection on both plug and receptacle sides for safe installation
- Four different coding variants without loss of contact
- Various termination technologies for individual device integration
Technical highlights
- Han QuickLock termination technology
- Touch-proof according to IEC DIN EN 60529
- Conductor cross-section: 1.5 – 2.5 mm² flexible
- Available for 48 V DC / 12 A (4-pole) and 250 V AC / 16 A (2-pole + PE)
Immediately available from stock:
- 0946 145 3510: PP-V4-CC-P-250V/16A-3p-QL-P-2.5mm²
- 0946 145 4510: PP-V4-CC-P-48V/12A-4p-QL-P-2.5mm²
https://www.harting.com/09461454510
Versatile applications
The HARTING PushPull connector family is a solution for transmitting power, signals, and data in industrial environments. Easy handling, high assembly density, and excellent signal integrity make PushPull a choice for modern industrial electronics.
