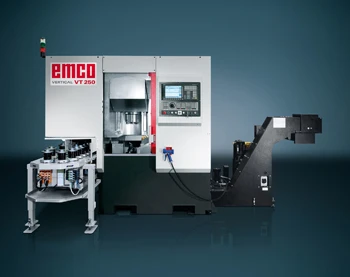

The vertical, high-torque, high-power 18kW (24hp) 4,000rpm main spindle makes turning, drilling, and threading operations easy and cycle times brief with the new VT 250 from EMCO Maier. Even hard turning is possible thanks to the strong performance data, including main spindle torque of 250Nm. Axis travel is direct driven 20.9" x 12.2" in X and Z and +/- 3.5" in Y. Maximum work piece turning diameter is 7.87" and maximum length is 5.91".
There will be three versions of the VT 250 from basic to VT250 MY with direct-driven spindle, with live tools and Y axis.
The small-footprint VT 250 is equipped with an integrated self-loading pick-up system, saving the user the costs and programming time related to external automation. The complete package is attractively priced.
Equipped with oversized roller guides, the new machine is predominantly suited for work on short and heavy workpieces with a large diameter and lengths to 6" The large guide rails and guide shoe guarantee excellent stability despite high loads.
The tool turret can hold 12 VDI40 tools each of which can be driven. The machine also has a carrier frame system in which customers can store up to 24 tools. The carrier frame moves the tools into the pick-up position.
The new VT 250 is also ideally equipped from a control perspective: The new Sinumerik 828D from Siemens is simple to operate and program. The ShopTurn interface makes is easy for shops to program their work.
The basic machine also includes a coolant device and a chip conveyor, which ensures optimal chip removal.
