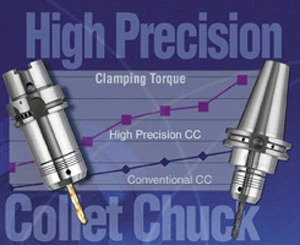

Command Tooling Systems' comprehensive line of High Precision products, including the ER16 and ER32 Collet Chucks, are available for BT, V-Flange, and HSK63A and HSK100 tapers.
Command's High Precision Collet Chucks are built to advanced specifications, providing lower tool and product costs due to longer tool life and reduced setup time. The reinforced chuck body and clamping nut deliver exceptional stability, and the ground trapezoidal thread ensures absolute centering of the clamping nut on the chuck. The result is extremely high concentricity, repeatability and runout of 3ยต with tighter production tolerances and better surface finish.
A range of collet sizes are available for the ER16 and ER32, from 1mm to 20mm and 0.125 in. to 0.750 in. A coolant seal is included to allow use of coolant-fed tooling and to prevent chips and swarf from entering the collet cavity.
