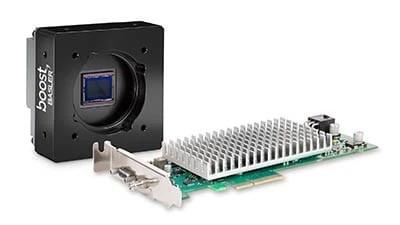

The Basler boost CXP-12 camera bundle combines the strengths of the camera - high resolution and speed thanks to modern CMOS sensor technology - with the performance of the new CoaXPress 2.0 standard. With the boost bundle, customers get the opportunity to use the advantages of this combination for their respective applications. Thanks to its features, the camera with its CXP-12 interface is particularly suitable for automated optical inspection tasks.
Optionally equipped with either of Sony's modern IMX253 sensor with 12-megapixel resolution and a maximum frame rate of 68fps or the IMX255 sensor with 9 megapixels at a maximum of 93fps, the boost camera series offers excellent image quality. In addition, there is a bandwidth of up to 12.5Gbps due to the modern CoaXPress 2.0 standard; both components - camera and interface card - can be conveniently controlled via the SDK of the pylon Camera Software Suite. This ensures simple integration and operation of the camera. Since a separate I/O cable is not required, Power-over-CXP (PoCXP) provides a convenient single cable solution with a maximum possible cable length of 40m. This reduces the complexity of the hardware setup and has a positive effect on system costs.
Currently four models of the Basler boost camera are available, the expansion of the series with new models is planned.
Detailed information about the Basler boost camera series and the boost bundle is available on the Basler website.
