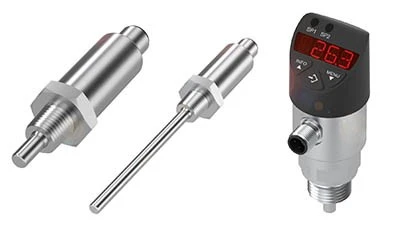

Balluff is expanding its range of sensors for media-contacting temperature detection, in hydraulic power units for example. New are a temperature sensor with display, a temperature transmitter, and a PT1000 sensor. The version without display is especially compact and vibration-resistant, whereas the versions with the turnable and highly readable display offers high operating convenience and flexible installation. Depending on the version, the BFT sensors provide PNP switching outputs, analog signals 0...10V /4...20mA or work as a PT1000 sensor. They are simple to install by threading into the process using a standard process connection with G- and NPT threads. Integrating them requires just a 4-pin M12 plug on the sensor.
Continuous monitoring of process media on machines and equipment contributes greatly to process security. Values that need to be maintained are pressure, level, and temperature. Monitoring the temperature of hydraulic fluid can be done reliably using BFT media-contacting temperature sensors. Monitoring the temperature within the hydraulic loop guarantees correct fluid viscosity and thereby the best machine performance. Critical process conditions such as a temperature limit can be controlled directly via the switching output. An analog output provides continuous measurement results. The BFT temperature sensors also monitor cooling water, lubricants, and compressed air in various applications.
