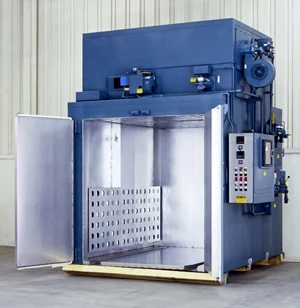

No. 940 is a gas-fired 500°F (260°C) walk-in oven from Grieve, currently used for curing brake friction materials at the customer's facility. Workspace dimensions are 72" wide x 96" deep x 78" high. 400,000btu/hr are installed in a modulating natural gas burner inside the oven, while 700,000btu/hr are installed in a modulating natural gas afterburner. The oven's initial exhaust passes through the 1,400ºF afterburner. A 6,000cfm, 5hp recirculating blower provides combination airflow to the workload.
The oven has 4" thick insulated walls, aluminized steel interior and exterior, plus a top-mounted heating chamber. All safety equipment required by IRI, FM and NFPA Standard 96 for gas-heated equipment is onboard, including a 650cfm, ½-HP powered forced exhauster.
Controls on No. 872 include digital indicating temperature controllers and a 10" diameter circular chart recorder.
For more information, please contact:
The Grieve Corporation,
500 Hart Road,
Round Lake, Illinois
60073-2835 USA.
Phone: (847) 546-8225.
Fax: (847) 546- 9210.
Web: www.grievecorp.com
Email: sales@grievecorp.com
