Manual motor controller

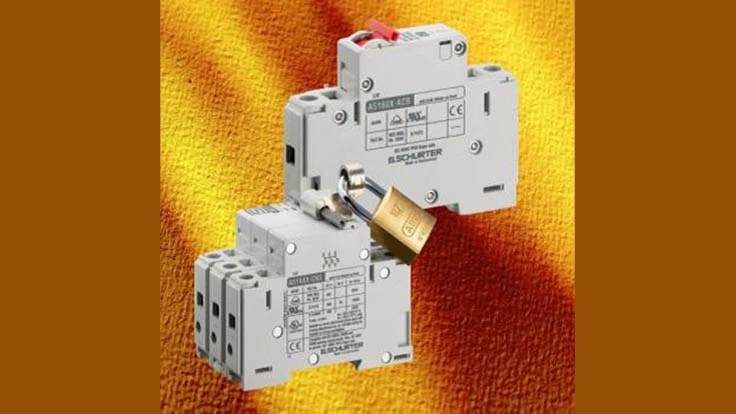

Santa Rosa, California – Schurter’s AS168X thermal magnetic, high-performance circuit breaker is UL 508 listed as a Manual Motor Controller. The AS168X provides motor disconnect from 0.5A to 30A, and motor protection from 1/10hp to 20hp for industrial control applications.



The AS168X series is rated 0.5A to 52A @ 480Y/277VAC. The high performance CBE limits let through energy in the event of a short circuit up to 10kA at 277VAC. The family has three levels of short circuit protection, categorized by F, G, and H curves and is available in one to four poles. Multi-pole devices are connected internally and at the handle for simultaneous operation. This applies also to combinations with the switched neutral pole. The thermal magnetic, positively trip-free breaker, with manual ON/OFF actuation has a high endurance (life cycle) of 6,000 cycles (In) with an ambient temperature range of -20°C to 60°C.



Schurter’s Manual Motor Controller is DIN Rail mountable, style EN50022, for quick installation. Screw terminal connections at line and load accept a range of wire sizes 16AWG to 4AWG. Compact in design, measuring 17.5mm in width, these circuit breakers conserve panel space and are suited for high-density configurations. Ingress protection of IP40 from the front side is in accordance with IEC 60529. The circuit breaker is RoHS compliant.



Various accessories are available for the AS168X series including a factory mounted switched neutral pole, remote relay/shunt trip module, lockout attachment, and auxiliary and signal contact options.
