Optodyne introduces stable laser measurement head

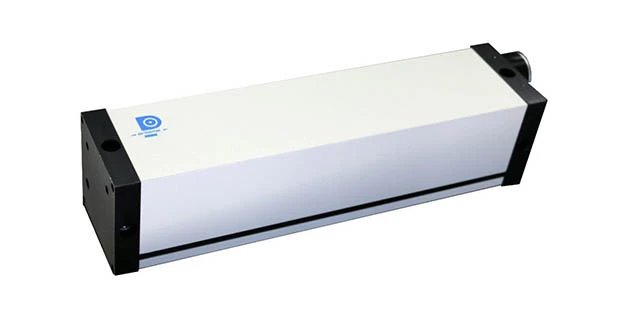

Rancho Dominguez, California – Optodyne Inc., a supplier of laser measurement, calibration and compensation systems, has introduced a stable laser head L-109H for high performance and accuracy measurement. The L-109H is compatible with the L-109 laser head. The physical dimensions, mounting holes, connectors, and accessories mount threads are all the same.  The outside dimensions are 2" x 2" x 8.5" (50mm x 50mm x 215mm).



With more solid mounting structure and balanced thermal design, the laser frequency stability was tested to be better than 0.02ppm. Hence better than 0.2ppm measurement accuracy can be achieved.



The MCV-500 laser calibration system is a basic system for linear displacement measurement. With accessories such as SD-500 to perform 3D volumetric position error measurement; AM-500 for angular error measurement; LB-500 for dynamic circular contouring measurement; and SP-500 for spindle error motion measurement. It is complete with carrying cases, data collection and processing software using USB interface and Windows operating system. The software is capable of automatic data collection and data analysis based on ISO 230 and ASME B5 standards, and generates pitch error compensation files for most controllers such as Fanuc, Siemens, Forgo, Heidenhain, Mitsubishi, etc.
