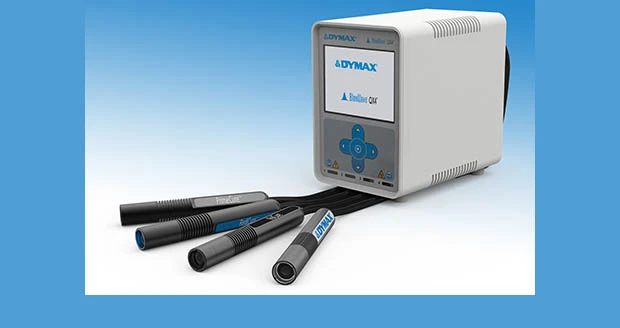

BlueWave debuts QX4 LED multi-head spot-curing system

Torrington, Connecticut – Dymax Corp. has released the BlueWave QX4 high-intensity spot-curing system, featuring the benefits of LED-curing technology in a small unit. The system is comprised of a controller and up to four LED heads which are available in 365nm, 385nm, and 405nm and can be outfitted with 3mm, 5mm, or 8mm diameter focusing lenses. The LED heads and focusing lenses can be used in any combination and can be controlled through the system’s variable mode, a feature that allows each head to be individually programed for intensity and cycle times. Individual exposure times and intensity settings can be set in 1% increments for each LED head, giving users maximum curing flexibility.



In addition to its curing versatility, the BlueWave QX4 also features a control interface that facilities flexibility in the unit’s setup and use. The unit can be activated by foot pedal or PLC interface, allowing it to be incorporated into automated systems.
