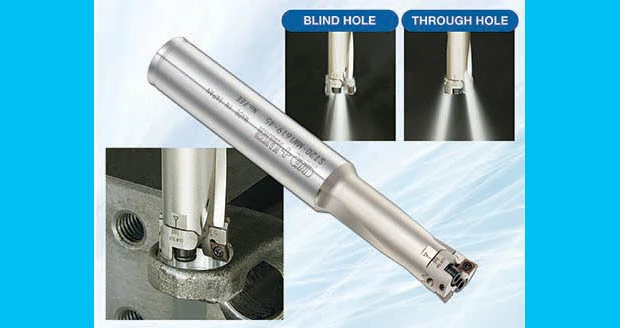

Big Kaiser offers small-diameter indexable rough boring head

Hoffman Estates, Illinois – The small-diameter indexable rough boring head permits small-hole rough boring in a range of 16mm to 21mm diameter (0.630" to 0.827" diameter) and is suitable for semi-finish boring operations of workpieces with die cast holes.

Unlike other boring tools from BIG Kaiser, the new MW does not feature the modular KAISER KA/KAB connection. Built with a 20mm diameter straight shank, the product performs best when paired with a milling chuck at fixed bore depths up to 4xD.

Efficient chip evacuation was a major consideration in the design of this tool. A spiral groove carved in to the body facilitates clean and quick chip removal with the help of coolant holes near the end of the groove. However, for blind-hole situations, an additional center-through coolant option was added to aid in chip evacuation for this tricky scenario. Simple stop screws makes choosing coolant preferences fast and easy.

The two opposing die-steel insert holders feature a precision serrated mounting system, providing a secure and rigid connection similar to the KAISER 319 SW series. The insert holders are marked with a scale for coarse setting, and the radial adjustment screw allows for fine-tuning thanks to its 0.008” pitch. Coated inserts are available for common materials like steels (including stainless), ferrous materials such as ductile and cast iron, as well as non-ferrous materials like aluminum.

Source: BIG Kaiser Precision Tooling Inc
