International Space Station Crew Gets Cool Treat

By helping to maintain cryogenic temperatures as low as -95°C, BellowsTech, LLC edge welded metal bellows have become a trusted, reliable solution for NASA cryogenic temperature chambers.

In October NASA’s Commercial Resupply Services (CRS-1) mission lifted off from Launch Complex 40 at the Cape Canaveral Air Force Station in Florida, carrying a batch of frozen confectionery ice cream as a surprise for the three member crew on board SpaceX’s  Dragon cargo capsule.  The ice cream was stored onboard in a GLACIER freezer, in which a BellowsTech edge welded bellows assembly was designed.

The GLACIER, or General Laboratory Active Cryogenic ISS Experiment Refrigerator, fabricated by the University of Alabama-Birmingham, is used primarily to preserve science samples that require temperatures between -301°F and 39°F (-160°C and +4°C) on the way to and from the International Space Station (ISS).  The mini-fridge sized freezer previously flew aboard the space shuttle.

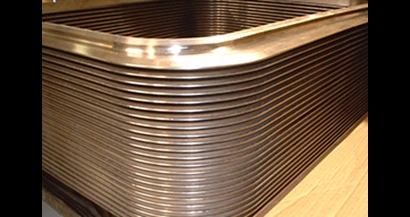

A BellowsTech rectangular bellows assembly provides the mechanical seal between the GLACIER’s door and the refrigeration unit; providing a leak-tight seal once the door is closed to prevent temperature changes.   At extremely cold temperatures, materials like rubber becomes brittle, however; using a metal bellows assembly as the mechanical seal ensures survival through the cryogenic temperatures of the chamber.

With the ability to customize size, shape, material, weight, length, and mounting connections BellowsTech can provide a solution to industry specific application needs.
