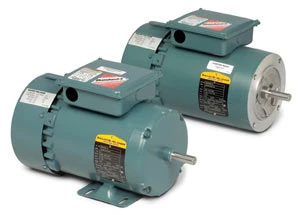

Three phase short series brakes (SSB) feature an integral Dodge spring set brake for a compact and cost effective design. The DC brake is magnetically released with a built-in single phase rectifier and has a manual release lever. Brake leads are brought to the motor conduit box for connecting to the motor leads or connecting separately when used with an inverter.
Available for 230V/460V and 575V operation in NEMA sizes 56C through 184C, and in ½hp through 5hp, the brake motors are UL/CSA recognized and CE certified. 56-140 frames have low profile F3 top-mounted conduit boxes and are inverter ready. SSB brake motors can be universally mounted and are inverter ready. 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors. Baldor short series brake motors feature a two-year warranty.
Also on display will be the Dodge QUANTIS GOLD C-face gearmotor.
IMTS BOOTH D-4729
Baldor Electric Co.
Fort Smith, AR
baldor.com
