The LaserTurn is a dedicated motion subsystem for cylindrical laser processing applications. The system includes an automated, pneumatically-activated three-jaw gripper or ER collet for part holding. The three-jaw gripper has a clear aperture for product feed-through and can be configured for OD, ID or odd form gripping with various jaw geometries. The ER collet chuck also has a clear aperture for product feed-through and can support tubing diameters from 0.5mm to 30mm.
The LaserTurn series utilizes direct-drive non-contact motor and encoder technology for both the linear and rotary axes. Direct-drive motors exhibit significantly higher throughput and maintenance-free operation when compared to gear and screw-driven technology. Linear and rotary encoders coupled directly to the load have the highest level of system accuracy and repeatability over the operating lifetime of the stage.

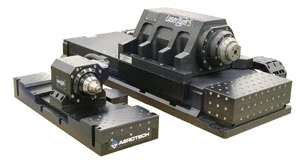

Three platforms – LaserTurn 1, LaserTurn 2, and LaserTurn 5 – are available and each product features automated material handling capabilities and modular tooling platforms.
IMTS BOOTH D-3246
Aerotech Inc.
Pittsburgh, PA
aerotech.com
