Fast, Accurate, Afordable Presetters

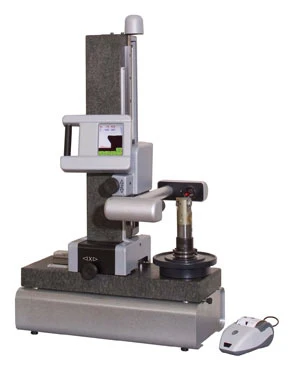

With the introduction of its E123 presetter, Lyndex-Nikken has combined accuracy and affordability in tool measurement and inspection. The E123 is easy to use, precise and hightech.

For rigid and accurate performance, the E123 features the same solid ground granite column and base construction as more expensive presettters from the company's line. The movement accuracy of both X- and Z-axis is guaranteed through the use of stable granite supporting surfaces. Handwheels are incorporated for final framing of the profile in the screen.

E123 presetters feature a fixed rotating spindle that uses six mini bearings with radial concentricity error compensation. Two standard versions are available – ISO/BT/ CAT40 and ISO/BT/CAT50.

The E123 is equipped with a touchscreen vision system featuring a full-color LCD screen. A C-MOS image sensor with STN screen allows accurate measuring of any kind of tool profile. Measurement is fully automatic and includes both radii and angle values. Focusing bars are included to ensure repeatability. X-axis measuring range is 130mm and Z-axis is 360mm. Resolution is 1µm to 5µm.

Lyndex-Nikken Inc.
Mundelein, IL
lyndexnikken.com
