High feed milling cutter

High feed milling cutter

January 7, 2022

Walter USA

https://www.walter-tools.com/

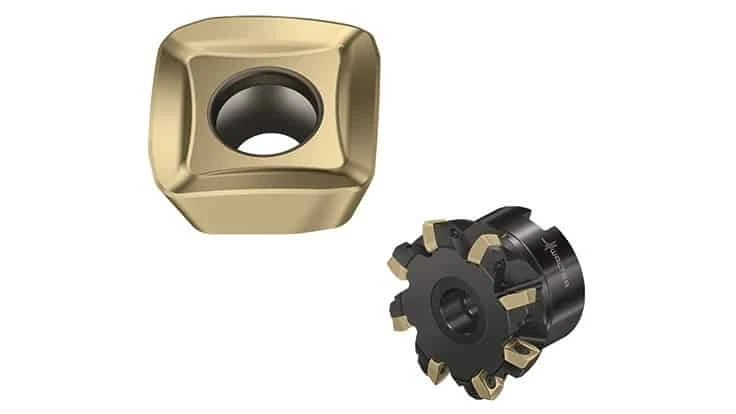

Walter introduced an SDMX indexable insert for its Walter M4002 high feed milling cutter. This square positive, cost-effective universal insert lowers power requirements thanks to its highly positive geometries. The indexable inserts are thick for maximum process reliability and provides four cutting edges per indexable insert with a curved cutting edge for maximum stability.

There are two indexable insert sizes with facet—SDMX0904ZDR-E27 and SDMX1205ZDR-E27. The M4002 cutter provides a depth of cut of 1.5 or 2.0 mm and is available in diameters of 25-125 mm or 1-4 in. and is ideal for high-speed milling in steel and cast iron, stainless steel, materials with difficult cutting properties, and for demanding machining in mold and die making and general machining.
