4MP high-speed camera

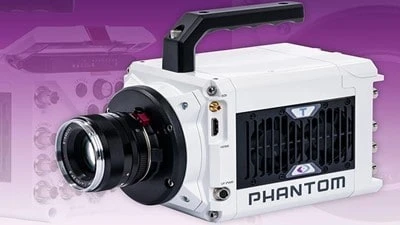

The Phantom T1340 high-resolution camera captures images up to 13 Gpx/second, doubling the capabilities of other 4 Megapixel cameras in its class. The 2048 x 1952 low-noise sensor, combined with a compact form factor, are ideal for demanding measurement applications such as object tracking, flow visualization, microscopy and modern imaging techniques, like Digital Image Correlation (DIC). A binned mode is included to provide higher throughput and a sensitivity boost at 1 Megapixel and below.

Workflow features of the T1340, which are ideal for applications in outdoor range environments, include Phantom CineMag V compatibility for an ultra-fast and secure workflow. The CineMag also supports direct recording for long duration events. A 10Gb ethernet option is available for fast file downloads, enabling users to continue shooting with reduced downtime in any environment. The on-camera controls, video outputs and CineMag compatibility enable a standalone operation.

“The Phantom T-Series is our new platform that brings higher throughput, larger RAM capacity and CineMag compatibility to a compact form factor,” says Toni Lucatorto, Product Manager. “This combination extends the possibilities for many industrial high-speed imaging applications.”

Key Specifications of the Phantom T1340 Camera

• Custom 12-bit CMOS sensor
• 2048 x 1952 at 3,270fps
• 1920 x 1080 at 6,160fps
• Maximum frame rate: 113,510fps at reduced resolution
• Native ISO: Mono 16,000D (25,000D Binned); Color 4,000D (6,400D Binned)
• Available with 36, 72, or 144 GB RAM
• Compact size: 5" x 5" x 8"
