Vision Engineering TVM Field of View (FOV) video measurement systems combine time-saving instant field of view measurements with measurement tools that cater to the needs of operators on the shop floor.

The system’s small footprint saves space in the workshop or laboratory, while TVM’s exceptional ease of use eliminates operator errors and significantly reduces time, providing a valuable asset for a wide range of quality assurance applications, such as instant go/no go assessments.

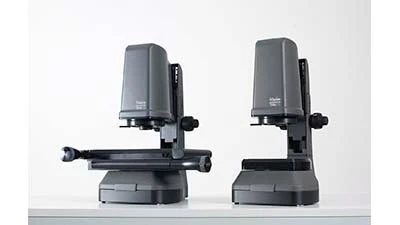

As with other measurement and inspection systems from Vision Engineering, the TVM systems can be configured to suit specific applications. The fixed stage FOV system enables instant, accurate measurements of small components, while the addition of a manually-controlled stage extends measurement for larger components up to 200mm x 100mm.

The combination of a flat field telecentric lens and collimated sub-stage lighting facilitates TVM’s measurement of components of any shape or form, including turned parts, pressed metal components, injection molded plastics, tubes, and cables.

TVM series comprises two systems, TVM20 and TVM35, with field of view (FOV) sizes of 20mm and 35mm respectively. Both systems are designed to meet rigorous quality assurance applications in automotive, aerospace, medical, electronics, and plastics manufacturing: offering rapid, accurate non-contact measurement. Components can be instantly measured within the field of view, with no need to adjust the focus or change the position of the subject under inspection.

TVM’s comprehensive, user-friendly software supports a broad range of applications delivering the precision and clarity that would be expected from expensive high end video measurement systems. The rich suite of features includes simple data import/export, image stitching and reporting facilities.
