Microstepping motor driver

Microstepping motor driver

August 21, 2018

US DIGITAL

http://www.usdigital.com
Design Components Motion Control Motors/Drive

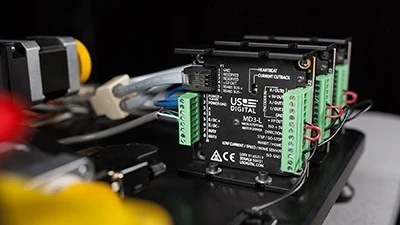

Vancouver, Washington – US Digital’s MD3 programmable microstepping motor driver is capable of driving motors from NEMA size 14 to 42. The MD3 accepts 9VDC to 50VDC power inputs and is rated for currents up to 7A continuous duty.

In addition to digital input controls, the MD3 can be configured and controlled using the open MODBUS RTU protocol over a RS485 bus. A GUI application is supplied that allows many settings to be changed including the number of microsteps per full step, acceleration/deceleration rates, speed and current cutback.

The design supports multiple MD3 units on the same RS485 bus and allows for programmable motion profiles. In addition, the MD3 has a brushed DC motor speed control mode. For more information visit usdigital.com/md3.
