Angled round toolholders

Angled round toolholders

February 17, 2021

Kaiser Tool Company, Inc - Thinbit

http://www.thinbit.com/

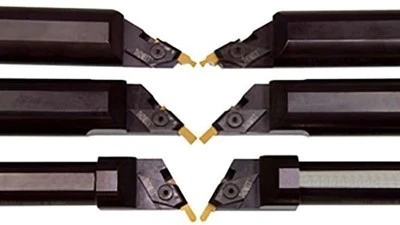

Thinbit, manufactured by Kaiser Tool Co. Inc., introduces Angled Round Toolholders designed for CNC, conventional, and end working positions on Swiss Screw Machines.

The new Angled Round Toolholders position the insert at 30°, 45°, or 60° angles for reliefs, undercuts and angled OD and face grooves. Round shank sizes are available in diameters of 1/2”, 5/8”, 3/4”, 1”, 20mm and 25mm.

The Angled Round Toolholders are for use with Thinbit inserts in grades for ferrous and non-ferrous materials.  Inserts are available in sizes 0.004” to 0.150” in 0.001” increments coated with TiN, TiAlN, TiCN, diamond film, or uncoated. See pages 2-9 & 2-10 in the Thinbit catalog.

Modifications can be provided on any of our tooling.  Due to the potential complexity of configuring these toolholders, we recommend calling 888-thinbit for assistance.
