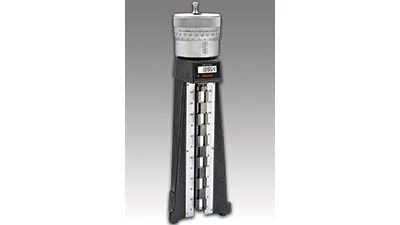

Athol, Massachusetts – The L.S. Starrett Co. has introduced Digi-Check Height Masters with electronic digital readout. The Digi-Check No. 258 Series Height Masters combine the accuracy of Starrett-Webber Gage Blocks with a precision micrometer head and digital readout display. Accurate, stable, and easy-to-read, Digi-Check Height Masters provide a reference setting for checking bore gages, inside micrometers, end measuring rods and other gages, and parts height measurement.

Digi-Check Height Masters have a large, easy-to-read electronic digital display providing instant readout to 0.0001" or 0.001mm. In addition, a graduated satin-chrome finished precision micrometer head with speeder knob for fast positioning provides staggered graduations reading to 0.0001" or 0.002mm. Both the micrometer head and digital readout are directly in line with the operator’s vision. The Digi-Check gage’s housing within a heavily flanged frame and base featuring three-point hardened, ground and lapped bearing pads, contributes to accuracy of ±0.0002" (±0.005mm) and makes the gage stable. Gage blocks are assembled in a free-standing system isolated from the frame, allowing the blocks to conform to the workpiece temperature. Accuracy is further enhanced via a one-piece micrometer spindle with hardened and stabilized measuring threads.

Over and under heights on Digi-Check Height Masters can be checked directly from the gage blocks in a single setting – and with reference surfaces on the top and bottom of each block, adjacent blocks are in the same plane. Readings can also be taken from left, center, or right of the gage block column. The design permits wringing a 1" block between two blocks in the column – convenient for setting and checking other gages.

Starrett Digi-Check No. 258 Height Masters are offered in three ranges: 0.100" to 12.100", 0.100" to 18.100", or 0.100" to 24.100". Metric models are also offered in three ranges: 2mm to 302mm, 2mm to 452mm, or 2mm to 602mm. Gages are furnished in finished, fitted wood cases. Height Master accessories such as Starrett Reverse Reading Blocks and Riser Blocks are also available.
