4-jaw power chuck

4-jaw power chuck

November 2, 2020

SMW Autoblok

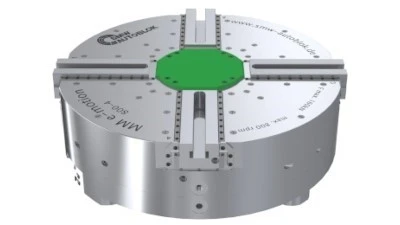

Wheeling, Illinois – SMW Autoblok’s fully sealed MM e-motion 4-jaw chuck provides contact-free adjustment of the gripping force without unclamping parts during every phase of the production process.

Each jaw of the MM e-motion is independently controlled and monitored by an individual electro-mechanical drive, which allows for many clamping functions including self-centering, compensating, and individual jaw movement all within one fully automated chuck.

Ideal for mill turn applications, horizontal and vertical lathes, the MM e-motion is optimum for heavy duty precision machining of easily deformed workpieces and provides an automatic center adjustment for any workpiece shape or configuration including round, square, rectangular, and irregular shapes in addition to workpieces with different wall thicknesses. The MM e-motion is also offered in a lightweight (LW) version that is ideal when mill turn load bearing capacity on the spindle is limited. The LW features the same functionality as the standard MM e-motion yet allows for higher workpiece weight and more usable Z stroke.

The chuck body and internal parts are case hardened for increased chuck life and highest rigidity, precision, and durability. This specialty power chuck accepts inch serrated top jaws and is available in sizes from 500mm to 1,250mm.

Ideal for Industry 4.0, permanent monitoring of the grip force and jaw positions can be stored and recalled for when the process needs to be repeated therefore, digital data is easily interchanged between different machines in the same production facility or at other facilities worldwide.

SMW Autoblok’s MM e-motion uses the newly developed F280 wireless inductive radial coupler system that transmits energy and data contact-free through an air gap of approximately 3mm between rotating and stationary components. The IP67 rated inductive coupler system includes a stationary coupler and a movable mobile coupler. The stationary coupler is incorporated into the machine or into set-up station and the mobile coupler is incorporated on the pallet side. Power of up to 1,500W can be transmitted between the stationary and mobile couplers and two CAN bus channels and two digital signals can be transmitted.
