Heavy-duty flatbed lathe

Heavy-duty flatbed lathe

January 16, 2020

Romi Machine Tools Ltd

Machining Turning/Milling

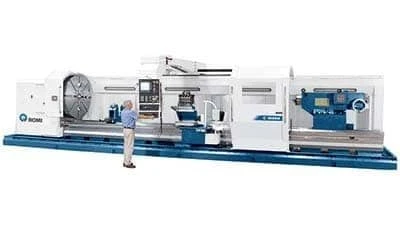

Erlanger, Kentucky – Romi C series heavy-duty flatbed CNC lathes are built with Romi made monoblock cast iron beds for optimum rigidity, accuracy and performance.

The heavy-duty C series includes nine models ranging from the C 1100H with a 28” (720mm) swing over cross slide and 72hp main motor, to the massive C 2600H with an 80” (2,030mm) swing over cross slide, and a 155hp main motor. All key components of Romi machine tools are designed and built in house for complete control and assurance of manufacturing quality.

Romi’s line of heavy duty CNC lathes feature net weights ranging from approximately 39,700 lb (18,000kg) to 134,500 lb (61,000kg), maximum weight between centers from a generous 33,100 lb (15,000kg) to 110,200 lb (50,000kg), and maximum torque from 12,429N•m to 44,200N•m.

The robust monoblock bed is made of gray cast iron and exhibits extreme rigidity. The cast iron headstock, also manufactured by Romi, features a spindle with Timken bearings.

Romi heavy-duty CNC lathes are powered by a high torque, continuously variable speed AC motor. The manually driven quill has a built-in live center with high precision bearings.

All models are built to reduce machine vibration and allow fast and accurate machining at full power. They are ideal for heavy applications in the mining, aerospace, steel mill, and oil and gas industries.
