Free-standing enclosure system

Free-standing enclosure system

July 9, 2021

Rittal

https://info.rittal.us/vxse

Schaumburg, Illinois – Rittal North America, a global manufacturer of industrial and IT enclosures, introduces the new VX SE free-standing enclosure system that offers greater versatility. For applications where Rittal’s AX compact enclosures are too small and the TS 8 baying enclosures are too large, the VX SE is an ideal midway alternative for applications where baying is not required. Additionally, the VX SE size range includes a 300mm deep version that is suitable for applications where space is limited.

The VX SE offers quicker time-to-delivery and faster, streamlined assembly, enhanced reliability, greater safety, and compatibility with other Rittal systems. With advantages such as high protection categories, a wide range of sizes from 300mm depth to 1,800mm width, different material options in carbon steel and stainless steel, and simple and complete engineering, the VX SE is an ideal stand-alone solution to help panel builders, machine builders, systems integrators, and end users increase their productivity.

“We see in the market that there are applications where baying is not required, so customers will benefit from the versatility of the new VX SE free-standing enclosure system that is compatible with our TS 8 baying system,” says Rittal Industrial Automation Product Manager Troy Miesse. “That means that panel builders who transition to the VX SE do not have to make major adjustments in terms of engineering, assembly, or component installation – everything stays the same. Also, it is possible to combine VX SE with any TS 8 accessories, so panel builders can simply make use of existing components from the baying product portfolio.”

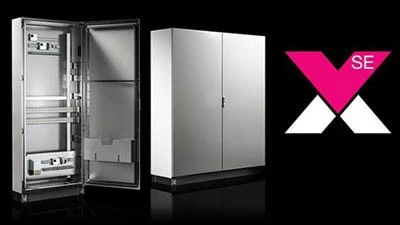

In contrast to baying enclosures with a frame and removable side panels, the free-standing enclosure has an all-in-one body made from a single piece of steel sheet or stainless steel. Image may be reproduced. Please name Rittal North America as the source.

Features of the new VX SE free-standing enclosure system include:

• Minimal ordering and assembly work due to the solid side panels and roof

• Body produced from a single piece for maximum stability and torsional rigidity

• Smart enclosure design from a single piece to help ensure good EMC properties

• Enhanced safety due to no gaps between side panels, roof, and frame

• High protection category up to IP 66/NEMA 4 or 4X

• Wide range of dimensions, up to a width of 1,800mm, can replace up to three bayed enclosures

• Depths of 300mm are ideally suited for applications in confined spaces

• TS 8 compatibility makes installation easy and engineering, assembly, and component installation remain the same

The VX SE is ideal for many applications which can be accommodated with a single enclosure. For example, with its high level of torsional rigidity, the VX SE is well-suited to cope with dynamic loads and stresses when used with compact machinery and equipment and their power distribution and automation components. Additionally, to meet the exacting hygiene standards of the food and beverage industry, the VX SE high protection category of up to IP 66/NEMA 4X allows cleaning with high-pressure water jets.
