Brushless, slotless motors line expands

Brushless, slotless motors line expands

June 18, 2018

Portescap

http://www.portescap.com
Motors/Drive

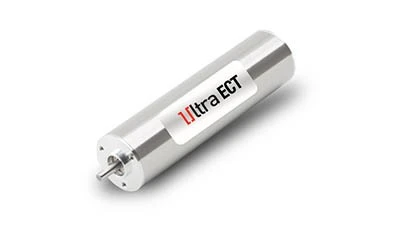

Portescap will be offering 2 more new length sizes under its ECT range of Ultra EC Brushless Slotless motors: the 35mm 22ECT35 and the 48 mm 22ECT48. These new 22ECT motors along with higher torque capacity are light in weight and come in a compact package which helps in further miniaturization of the customer application.

These compact brushless motors offer almost 50% more continuous torque over similar comparative motors without compromising on smooth operation and long life.

22ECT motors are optimized for high continuous torque at low to medium speeds, maximizing power between 10,000rpm and 20,000rpm.

The 22ECT motor are powered by Ultra Coil Technology and patented multipolar rotor design,

which provides torque of up to 41.6mNm. The 22ECT motor weighs almost 28% less than comparative motors.

Their low inertia makes them an option for applications requiring fast stopping, starting and acceleration.

The 22ECT motors are available with Hall sensors and a total of 3 different coils to match speed and voltage requirements. Portescap can also provide options for customization including gearboxes, encoders, coil variations, and mechanical interface modifications.
