3-finger electric gripper

3-finger electric gripper

May 6, 2020

OnRobot

http://www.onrobot.com/
Automation

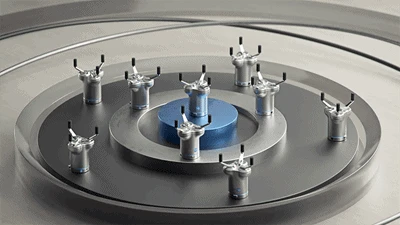

OnRobot, the makers of a full line of plug-and-produce robotics tools for collaborative applications, continues to drive innovation with the release of the compact, large-stroke 3FG15 three-finger gripper. The 3FG15 makes previously hard-to-automate precision handling of cylindrical parts easy to program and deploy and provides flexibility for a wide range of part sizes.

The 3FG15 gripper has a maximum stroke of 150mm that can easily handle multiple processes. The innovative three-finger design with a 15kg (33 lb) payload provides a strong, stable grip for both form fit (internal) or friction fit (external) gripping, adding flexibility to any implementation.

The gripper’s design, specifically developed for machine-tending tasks, automatically centers workpieces, resulting in a strong, stable grip and precise placement in machine chucks. With a gripping force from 10N to 240N, the 3FG15 competes with much less flexible finger grippers.

The gripper is also ideal for packaging and palletizing applications, and is seamlessly compatible with any major collaborative or light industrial robot arm through OnRobot’s One System Solution, the platform that provides a unified mechanical and electrical interface between the robot arms and any OnRobot end of arm tooling (EoAT).

3FG15 features

  • Precise stable grip with automatic centering
  • Large 150mm stroke for parts from 20mm to 150mm
  • Form fit (internal) and friction fit (external) gripping
  • 15kg payload
  • Weight 1.15kg, gripping force 10N to 240N
  • Fast, flexible deployment
