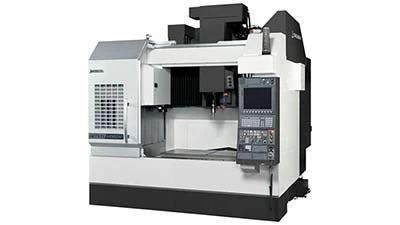

Genos M560-V vertical machining center

Genos M560-V vertical machining center

October 18, 2016

Okuma America Corp.

http://www.okuma.com/americas
Machining Machining Tooling/Cutting

Charlotte, North Carolina – The Genos M560-V vertical machining center, combines a high column design and CAT 40 Big-Plus spindle to cut large, complex parts. The larger work envelope minimizes restrictions on workpieces, tool lengths, and the rotary table. A rigid, thermally-stable, double-column construction gives the CNC machine the ability to withstand thermal deformation, resulting in improved machining performance. It’s also one of the heaviest machines in its class.

A 30hp spindle with 146 lb-ft of torque allows this machine to cut challenging metals such as titanium and Inconel as well as stainless steel and aluminum. A separate automatic tool changer door makes tool changing seamless without interrupting the machining process. The table moves only in Y, while the spindle moves in X & Z, enabling a smaller machine footprint, rapid feed rates, precise cutting, and smooth surface finishes.

Thermo-Friendly Concept, Okuma’s proprietary thermal deformation compensation technology is standard on this machine. Pretension ball screws and bi-directional spindle cooling allow for better control of the machining process. Optional collision avoidance and Machining Navi Intelligent Technologies are available.

  • Max. machining volume: 1,050mm x560mm x460mm
  • Table size: 560mm x1,300mm
  • Max. load capacity: 900kg
  • Spindle speed: 15,000rpm
  • Spindle motor power: 30hp
  • Magazine capacity: 32 tools

Source: Okuma America Corp.
