Linear motion positioning stages

Linear motion positioning stages

November 7, 2019

OES (Optimal-Engineering Systems Inc.)

http://www.oesincorp.com/
Motion Control

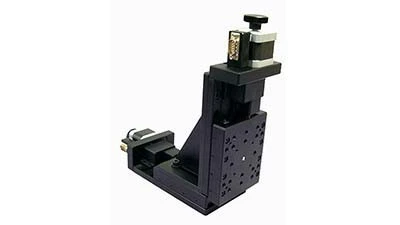

Van Nuys, California – OES (Optimal Engineering Systems) has added a new series of 15mm, 30mm, 50mm, and 75mm Linear Motion Positioning Stages to its selection of precision motion control components. Each of these motorized XZ-Axis Linear Positioning Stages features 1µm repeatability and 10µm positional accuracy. Both the X-axis (horizontal axis) and the Z-axis (vertical axis) have travel lengths of 15mm, 30mm, 50mm, and 75mm and can be longer to meet application requirements.

High precision 1mm per turn lead screws and crossed roller bearings are used in these black anodized stages useful for sampling, assembly, sorting, testing, laser drilling and machining, and positioning in lab and manufacturing environments.

The XZ-Axis linear stages are available with either stepper motors with knobs for manual adjustment which can be replaced with optical encoders for position verification. The stages are also available with servo motors and encoders for closed loop operation and higher operating speeds.

These XZ-Axis Motorized Linear Positioning Stages are compatible with the OES line of motion controllers and are available as a complete plug-and-play system.
