5-axis HMC for aluminum components

5-axis HMC for aluminum components

April 17, 2018

Mazak Corp.

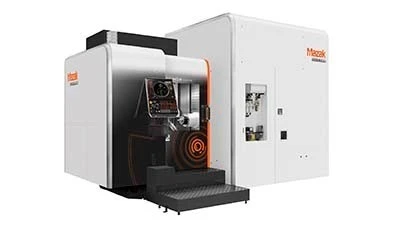

Florence, Kentucky – Mazak’s HCR-5000S 5-axis, single-table (S) horizontal machining center provides numerous technological innovations for efficient small- to mid-sized aluminum component processing.

The machine offers a range of high-speed spindle options, from a standard 12,000rpm spindle up to 30,000rpm one, and each feature an integral spindle/motor and ballscrew core cooling that minimize vibrations for higher accuracy. A 40-tool auto tool changer (ATC), expandable to a 160-tool capacity, further boosts productivity with a chip-to-chip tool change time of 2.8 seconds.

Linear roller guides allow the HCR-5000S to achieve 60m/min rapid traverse rates, 1G acceleration/deceleration rates in the X and Y axes ,and 0.8G in its Z axis to significantly shorten overall machining cycle times. Also with the guides’ low-friction, high-rigidity designs, the machine delivers aggressive feeds and speeds for everything from heavy-duty to high-speed cutting applications.

The HCR-5000S achieves unmatched precision with its single-table design that incorporates a high-rigidity bed, solid base X-axis construction, and roller gear cam systems for the A and C axes. The machine’s extremely accurate tilt/rotary table provides rapid traverse rates of 50rpm in its C axis and 30rpm in the A axis. The table positions in 0.0001° increments and accommodates parts weighing as much as 500kg and measuring up to 700mm in diameter and 644mm high, depending on the cutting orientation.

In addition to full 5-axis machining capability, the tilt of the table – along with a chip conveyor and flood coolant – ensures efficient chip management and evacuation. To further optimize chip flow, the horizontal spindle orientation also makes it possible to machine a part inverted while a standard 800L coolant tank accommodates a Niagara coolant configuration. For even higher levels of productivity and unmanned operation, the machine can be outfitted with an automatic two-pallet changer as well as a Mazak Multi-Pallet Pool (MPP) system or be incorporated into a fully automated Mazak PALLETECH System.

Mazak’s MAZATROL SmoothX CNC provides operators with complete control of the HCR-5000S. As the industry’s most capable and powerful control, SmoothX enables 3-D part program visualizations via its touch screen to further improve ease of use in terms of programming and program checking. Cycle times are reduced between 10 percent and 20 percent and surface finishes improved thanks to the control’s SMOOTH Machining Configuration options such as Seamless Corner Control, Active Vibration Control and Variable Acceleration.
