Grinding gage with immediate machine compensation

Grinding gage with immediate machine compensation

November 27, 2018

Marposs Corp

https://www.marposs.com
Quality/Metrology

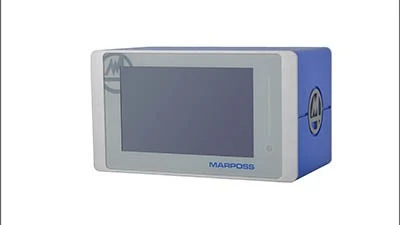

Auburn Hills, Michigan – Marposs Corp. has announced the availability of its P3dME electronic gage amplifier for post-process monitoring of smooth and grooved parts. This device, in conjunction with Marposs measuring heads, is a flexible, practical, and reliable solution for checking parts immediately after they have been machined. The P3dME will measure the workpiece and provide immediate compensation information to the machine tool. This ensures that parts are within tolerance limits and helps to optimize cycle-times.

The P3dME compact gage can be installed on the machine tool as a standalone device or integrated into the machine front end PC using a dedicated HMI. It features a 7" touchscreen with an intuitive, easy-to-use operator interface. Its robust housing is designed to withstand harsh shop-floor environments and resist abrasive grit, metallic particles, and cutting fluids.

The unit is available with either two or four channels for connecting to Marposs LVDT or HBT type measuring heads. Depending upon the chosen measuring head, the P3dME has a measuring range of ±250μm to 2,000μm.
