Vibration dampening leveling mounts

Vibration dampening leveling mounts

October 30, 2017

JW Winco

http://www.jwwinco.com
Design Components

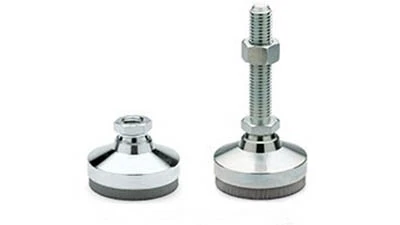

JW Winco Inc. now offers GN 342.1/342.2 metric size, tapped and threaded stud-type steel vibration dampening leveling mounts.

The specified load for these RoHS compliant leveling mounts features a recommendation up to the point the dampening element can be permanently subjected. This static load equals a thrust on the area, at which the dampening material reaches its optimum dynamic dampening ability. The elastomer of the dampening element is oil resistant and has an operating range from -30°C (-22°F) to 70°C (158°F).

The leveling mounts, which cannot be disassembled, feature a base, tapped socket or threaded stud, hex nut (hex nut is included with threaded stud version) made of steel, with a zinc-plated, blue passivated finish, while the dampening element is anti-slip elastomer material glued to the base.
