Vacuum media filter

Vacuum media filter

March 29, 2016

Jorgensen Conveyors, Inc.

http://www.jorgensenconveyors.com
Coolants & Lubrication Coolants/Fluids

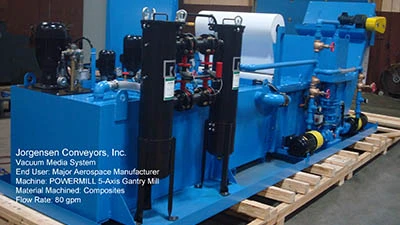

Mequon, Wisconsin – Vacuum Media Filter efficiently removes fine chips and grinding sludge and is effective in applications requiring coolant clarity to 10µm. Jorgensen’s vacuum media filtration systems are proven in various CNC grinding, metal cutting, and demanding composite machining applications at aerospace OEMs and top tier parts suppliers.

Roll media filters are engineered to meet customer specifications and are fabricated with a coolant reservoir per customer requirements.

Features
  • Fine filtration to 10µm
  • Provides positive filtration in difficult applications
  • Effective removal of fine chips, grinding sludge, and swarf
  • Uses deep filter cakes for efficient filtration
  • Heavy gauge steel construction
  • Stainless steel designs available
  • Positive seal design to eliminate fines migration
  • Wide range of filter media offered
  • Vacuum systems for smaller footprints in higher flow rate applications
  • Can be used for primary or secondary filtration.
  • 5gal/min-to-5,000 gal/min flow rates (to 19,000L/min) for stand-alone or central systems
  • Effective pre-clean system for high pressure coolant

Coolant Flow Rates:

Model

Requirements for machine

Gallons per minute

Liters per minute

VRM - 600

0 – 60 gpm

0 – 227 lpm

VRM - 1200

61 – 120  gpm

231 – 454 lpm

VRM - 2400

121 – 240 gpm

458 – 908 lpm

VRM - 10000

241 – 1000 gpm

912 – 3785 lpm


Vacuum Media Filters can be integrated with:
  • High pressure coolant system
  • Pumps / plumbing / coolant transfer
  • Downstream filtration
  • Tramp oil skimmers
  • Coolant chillers / heat exchangers
  • Complete electrics / controls
  • Air knife
  • Low media alarm
  • Media rewinder

Source: Jorgensen Conveyors Inc.
