Pyramid risers

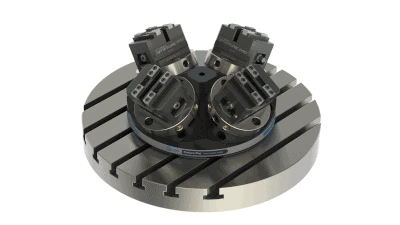

Cleveland, Ohio – Jergens Inc.’s three- and four-sided pyramid risers permit multi part load and provide greater access for 5-axis machining applications. Part of the Fixture-Pro line of quick-change modular workholding solutions, Jergens pyramids feature a 30° mounting surface to ensure maximum clearance for spindle and cutting tool paths resulting in more machining per setup

The engineered solutions offer three versatile mounting options. Direct-to-table uses t-slots, center pin and timing key, and is secured using t nuts and Socket Head Cap Screws (SHCS). QLS accurately locates and clamps the pyramid to a base element, such as subplates, using a combination of QLS shoulder screws and SHCS. Quick-Loc pallet systems use pull studs (spaced at the industry-standard 96mm pattern) to locate and clamp in a single step.

The light-weight aluminum risers are compatible with virtually all five axis CNC machining centers and ensure the fastest change over and setup times possible. Available in both three-position and four-position configurations, Jergens pyramid risers mate with many top tooling choices including self-centering vises, dovetail vises and ER collet fixtures.
