5-axis double-column machining center

5-axis double-column machining center

March 18, 2019

Hurco Companines Inc.

http://www.hurco.com

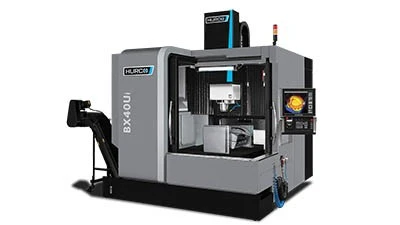

The Hurco BX40Ui 5-axis CNC double-column machining center, with integrated trunnion table along the Y-axis, combines performance and flexibility. The ladder structure and double-column design provide rigidity and support the head casting. With an 18K motorized spindle and oversized linear guide rollers, the BX40Ui handles a range of applications. Additionally, the bridge structure is isolated from part weight and operates in a stable and predictable manner. High cutting feed rates are achieved with UltiMotion high-speed motion technology that simultaneously reduces cycle times by up to 30% and delivers high surface finish quality. The Solid Model Import feature of the Hurco control makes programming easier for high-mix shops that manufacture smaller quantities of parts.

Hurco distributor Brooks Associates will demonstrate Hurco 5-axis technology at EASTEC Booth #1206.



BX40Ui specs

Table size: 13.7" (348mm) diameter

Max weight on table: 551 lb (250kg)

XYZ-axis travel: 37.4" x 21.6" x 19.7" (950mm x 550mm x 500mm)

Rapid traverse X, Y, Z-axis: 1,535ipm, 1,535ipm, 1,535ipm

(39m/min, 39m/min, 39m/min)

Tool type: HSK 63

Peak spindle motor: 47hp (35kW)

Spindle torque 88 ft-lb @ 2,800rpm

Number of tools: 30

Machine weight 20,723 lb (9,400kg)
