500°F special universal oven

500°F special universal oven

December 20, 2018

Grieve Corporation

http://www.grievecorp.com/index.php
Material Handling Surface Finish

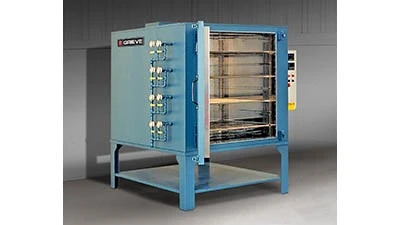

Round Lake, Illinois – No. 856 is a 500°F (260°C), special universal oven from Grieve, currently used for curing composite parts in vacuum bags at the customer’s facility. Workspace dimensions of this oven measure 42"W x 40"D x 50"H. Incoloy-sheathed tubular elements offer 48kW of heat, while a 4,200cfm, 3hp recirculating blower provides universal airflow to the workload.

The oven has 4" thick insulated walls and Type 430 stainless steel interior. Features include an integral leg stand and four levels of two 3/8" NPT pipe ports connected to common manifold. Additional features include a vacuum gauge and ball valve on each port.

Controls on the #856 include a digital, microprocessor based, thermocouple actuated, indicating temperature controller, motor control push buttons, an on-off heat switch and LED pilot lights.
