Electric, pneumatic motion automation solutions

Electric, pneumatic motion automation solutions

April 26, 2019

Festo Corp.

https://www.festo.us
Design Components Electrical/Electronic Fluid Power Motion Control Software

Festo productivity enhancing solutions include component interoperability and online tools for designing subassemblies that slash OEM engineering overhead and reduce delivery time.

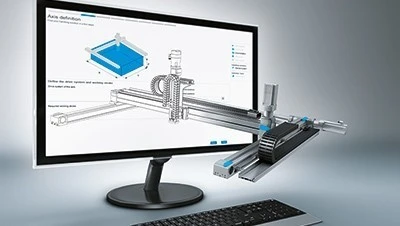

With the Festo Handling Guide Online, engineers can design  single axis, 2D, or 3D Cartesian robots and receive CAD files in as little as 20 minutes. The robots are delivered either as subassemblies or as kits. Seamlessly and automatically, the new Festo Motion Control Package (FMCP) designs the robot’s control panel utilizing data generated from the Handling Guide Online session. After delivery, it requires just a few hours to add power to the control panel and configure the robot’s motion profile.

On Festo's DGST pneumatic mini slide, the slide and yoke plate on this compact component represent a single unit. This eliminates the problems associated with yokes vibrating loose from slides. The DGST features high feed forces, symmetrical mounting interfaces, and precise and resilient roller bearing guides. The DGST can be operated without additional cushioning devices, which contributes to the component’s small footprint.

The DHEF adaptive gripper offers maximum flexibility while requiring minimum engineering. The adaptive gripper can hold a range of shapes, unaligned objects, and several objects at once. The DHEF is suitable for human/machine interaction.

The new, low-cost linear axes ELGC and mini slide EGSC electric actuators are used for applications where compact dimensions are essential. These axes can be combined into space-saving handling systems that fit seamlessly into assembly, test and inspection, small parts handling, and desk top applications. They offer an optimal ratio between installation space and working space. The axes and mini slide feature a common system approach, platform architecture, and adapter-less connections.

The configurable YJKP servo press kit for electrical press-fitting and joining can be tailored to the needs of the user, guaranteeing a flexible design and reducing investment costs.

Festo electric drives could be used for stopping and separating workpiece carriers on a transfer system.
