Micro laser welder

Micro laser welder

July 10, 2020

Emerson (Automation, Branson)

https://www.emerson.com/en-us/automation/branson
Welding

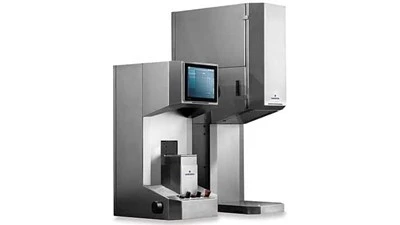

Emerson has introduced the Branson GLX Micro Laser Welder, supporting the need to manufacture smaller and more delicate plastic parts used in the medical and consumer electronics industries. The benchtop version of the GLX Series uses advanced laser technology and incredibly low clamp force to produce precise, clean, and repeatable welds of superior aesthetic quality and performance. This provides manufacturers with greater design freedom and increased production throughput.

The GLX Micro uses patented Simultaneous Through-Transmission Infrared (STTIr) laser welding technology, which enables manufacturers to achieve superior weld strength and quality with exceptional speed and flexibility. With STTIr, all lasers are fired simultaneously to heat, melt, and bond the component parts along the entire weld surface in 0.5 seconds to 5 seconds, depending on material and geometric complexity. This method is highly repeatable and stable, helping to increase production throughput.

STTlr eliminates the use of friction which may generate flash and particulates, thereby ensuring smooth and barely visible weld lines can be incorporated into product designs. With STTlr, highly complex 3D contours can be accommodated, allowing designers to create parts for maximum functionality and ergonomic appeal. The GLX Micro offers the industry’s lowest clamp force of 1 Newton, enabling the joining of small and very delicate parts, including those with embedded electronics and sensors.

The GLX Micro is cleanroom compatible, has a stainless-steel design, requires no lubricants, and is powered from a remote electrical cabinet that can be positioned outside the production area. To support traceability, production data – including weld depth and clamp force – is available in a range of formats and can be outputted to the manufacturing execution system.
